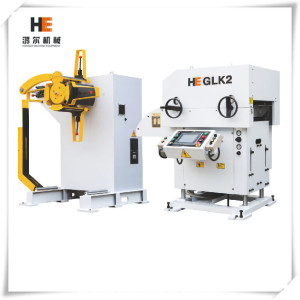

Decoiler Straightener Feeder

Decoiler Straightener Feeder

Decoiler Straightener Feeder
CategoriesPress Feed Equipments
AlbumView larger image
BrandHONGER
ModelGLK2
Servo MotorJapan Yaskawa
PLCJapan Mitsubishi
CE CertificatePassed
Air CylinderJapan CKD
Expansion wayHydraulic Rod
BearingJapan NSK
Suitable Coil Width50-1200mm
Suitable Coil Thickness0.3-3.2mm
Pressing ArmWith
Coil CarFor Choosing
FOB portShenzhen Port or China other port
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2017-06-23
Detail Information

About Decoiler Straightener Feeder:

Our Decoiler Straightener Feeder speed can reach 0-22 m /min. And suitable all kinds of metal coil Uncoiling,Straightening and automatic Feeding.
Our Decoiler Straightener Feeder are suitable 0.4-3.2 mm thickness all metal coil uncoiling,straightening and feeding.

Our Decoiler Straightener Feeder widely used to computer, mobile phone,automobile industry,appliances manufacturing,
medical apparatus and instruments,Car Accessories, hardware & Metal parts etc industry.And matched all kinds of press machine.

2 .Decoiler Straightener Feeder Feature And Advantage:

1. Save factory area. 3 machines together one.


2. High precision:+/-0.05mm


3. Suitable for material thickness :0.3-3.2 mm.


4. Suitable for all kinds of metal coil automatic straightening and feeding,easy to operate.


5. Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening and feeding.


6. Japan servo motor , PLC and other electrical parts,with little malfunction and long using time.High quality ,lowest maintenance.


7. Can feed different length at one  time,easy operation, safe and high stability.


8. We can customize the machine.


9. Fast speed: 0-22 m/min.


10. Coil car , pressing arm, conveyor belt , shearing machine , oiling machine etc. for choosing.


3.Decoiler Straightener Feeder Technology Data:


Name


Decoiler Straightener Feeder

Model


GLK2-300

GLK2-400

GLK2-500

GLK2-600

GLK2-700

GLK2-800

Material strength


b≤392Mpa   σs≤245MPa

Material  width


50-300mm

50-400mm

50-500mm

50-600mm

50-700mm

50-800mm

Applicable material thickness


0.3-3.2mm

Feeding length


0-9999.99mm

Inside coil diameter


Φ508mm

Max.coil outside diameter


Φ1200mm

Max.coil weight


2000KG

2000KG

3000KG

5000KG

5000KG

5000KG

Max. feeding speed


22m/min

Expansion style


Hydraulic expansion

Pressing way


With pressing arm

Straightener roller


11 Pieces , top 6/ bottom 5,Φ48 mm

Power


AC380V±10%,50HZ ±2% , (can be changed according to your requirement)

Pneumatic pressure


0.5 Mpa

Running direction


From left to right


4.Our Decoiler Straightener Feeder Matched Punching Press Machine In Our Client's Factory:




5.Decoiler Straightener Feeder Producing Line:





About Hong-Er Machine:
1.  Hong-Er Machine Introduction
Shenzhen Honger Machine Equipment Co.,Ltd are professional Decoiler Straightener Feeder,2 In 1 Sheet Steel
Straightener And Uncoiler, Decoiler Straightener Feeder,Sheet Metal Press Machine,Punching Press Machine,Decoiling
and Straightening Machine,NC Servo Roll Feeder,Servo Roll Feeder,Zig Zag Feeder,Mechanical Feeder,
Rapid Air Feeder,Uncoiler Machine,Sheet Metal Decoiler,Strip Straightening Machine,Sheet
Straightening Machine Manufacturer/Factory/Supplier/Exporter in Guangdong of China.
We are the only own international advanced big CNC that include FPW & VMC.
The Top one quality best price Machine manufacturer in Guangdong.
We are near to Hongkong,Guanggou,Dongguan etc. And Shenzhen Baoan Airport is
international airport,If you want to visit us ,that is very convenient.
Welcome to visit our factory!
2.Hong-Er Machine CE Certificate:

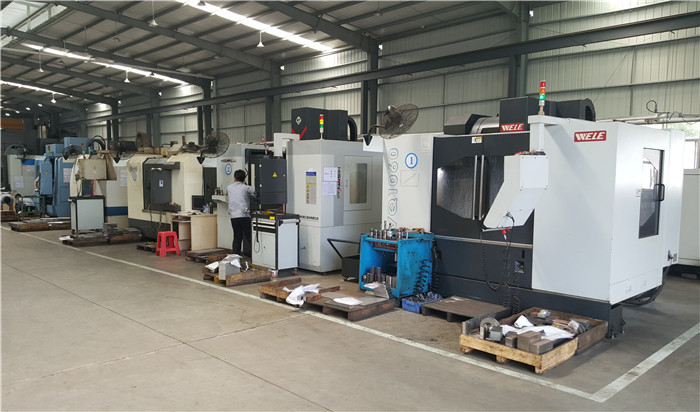

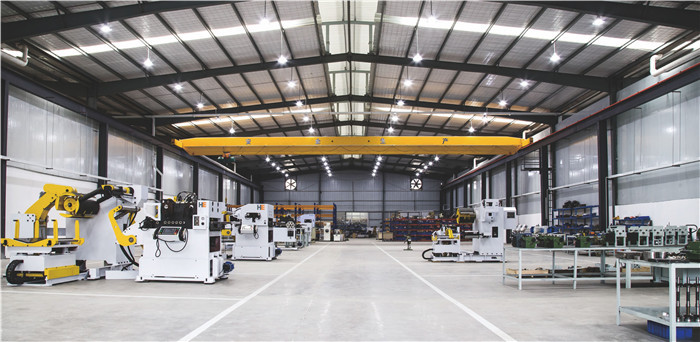

3.Hong-Er Factory And Workshop:




About Hong-Er Service:


1. We Can Provide To Buyer Details Requirement:


Package

Wooden case and film package

After-Sale service

1 Year

Delivery time

15-35 workdays

Shipping way

Ocean shipping

Payment term

T/T  L/C  Cash or other



2.Decoiler Straightener Feeder Packing:wooden case or other package. According to the actual condition.




3.Feedback Time: within 2 hours. When we receive your inquiry and machine questions, We will reply you with 2 hours.


Hong-Er Online Contact Way:


Service Phone: 0086 755 28372363


Email: export@he-machine.com



If You Want To Know More .Decoiler Straightener Feeder,Straightener-Leveller Machine, Decoiler And Straightener,2 In 1 Sheet


Steel Straightener And Uncoiler, Decoiler And Striaghtener Machine Information,Please Don't Hesitate To Contact Us.


We Can Design And Produce According To Your Requirement.And We Have Exported Theses Machine To Poland, UK,


Hungary,Thailand ,USA, Germany ETC. Country. The Series Machine Are Very Welcomed !
