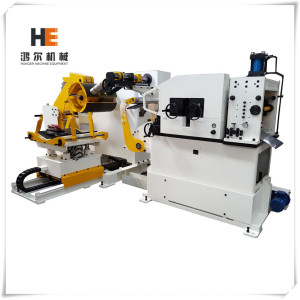

Power Press 3 In 1 Feeder

Power Press 3 In 1 Feeder

Power Press 3 In 1 Feeder
Categories3 in 1 Pressfeed Line
AlbumView larger image
BrandHONGER
ModelGLK3
Servo MotorJapan Yaskawa
PLCJapan Mitsubishi
CE CertificatePassed
Air CylinderJapan CKD
Expansion wayHydraulic Rod
BearingJapan NSK
Suitable Coil Width50-1200mm
Suitable Coil Thickness0.5-4.5mm
Pressing ArmWith
Coil CarFor Choosing
FOB portShenzhen Port or China other port
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2019-07-23
Detail Information


About Power Press 3 In 1 Feeder:

Our Power Press 3 In 1 Feeder speed can reach 0-22 m /min. And suitable all kinds of metal coil Uncoiling,Straightening and
 automatic Feeding.
Our Power Press 3 In 1 Feeder are suitable 0.5-4.5 mm thickness all metal coil uncoiling,straightening and feeding.

Our Power Press 3 In 1 Feeder widely used to computer, mobile phone,automobile industry,appliances manufacturing, medical
apparatus and instruments,Car Accessories, hardware & Metal parts etc industry.And matched all kinds of press machine.

2 .Power Press 3 In 1 Feeder Feature And Advantage:

1. Save factory area. 3 machines together one.


2. High precision:+/-0.05 mm


3. Suitable for material thickness :0.5-4.5 mm.


4. Suitable for all kinds of metal coil automatic straightening and feeding,Easy to operate.


5. Suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening and feeding.


6. Japan servo motor , PLC and other electrical parts,with little malfunction and long using time.High quality ,lowest maintenance.


7. Can feed different length at one  time,easy operation, safe and high stability.


8. We can customize the machine.


9. Fast speed: 0-22 m/min.


10. Coil car , pressing arm, conveyor belt , shearing machine , oiling machine etc. for choosing.


3.Power Press 3 In 1 Feeder Technology Data:


Name


Power Press 3 In 1 Feeder

Model


GLK3-400

GLK3-600

GLK3-800

GLK3-1000

Material strength


σb≤392Mpa   σs≤245MPa

Material  width


70-400mm

70-600mm

70-800mm

70-1000mm

Applicable material thickness


0.5-4.5mm

Feeding length


0-9999.99mm

Inside coil diameter


Φ508mm

Max.coil outside diameter


Φ1200mm

Max.coil weight


3000KG

3000KG

5000KG

5000KG

Max. feeding speed


22 m/min

Expansion style


Hydraulic expansion

Pressing way


With pressing arm

Straightener roller


7 Pieces , top 4/bottom 3,Φ68 mm

Power


AC 380 V±10%,50 HZ ±2% , (can be changed according to your requirement)

Pneumatic pressure


0.5 Mpa

Running direction


From left to right


4.Our Power Press 3 In 1 Feeder Matched Punching Press Machine In Our Client's Factory:




5.Power Press 3 In 1 Feeder Producing Line:





About Hong-Er Machine:
1.  Hong-Er Machine Introduction
Shenzhen Honger Machine Equipment Co.,Ltd are professional Decoiler Straightener Feeder,2 In 1 Sheet Steel
Straightener And Uncoiler, Decoiler Straightener Feeder,Sheet Metal Press Machine,Punching Press Machine,Decoiling
and Straightening Machine,NC Servo Roll Feeder,Servo Roll Feeder,Zig Zag Feeder,Mechanical Feeder,
Rapid Air Feeder,Uncoiler Machine,Sheet Metal Decoiler,Strip Straightening Machine,Sheet
Straightening Machine Manufacturer/Factory/Supplier/Exporter in Guangdong of China.
We are the only own international advanced big CNC that include FPW & VMC.
The Top one quality best price Machine manufacturer in Guangdong.
We are near to Hongkong,Guanggou,Dongguan etc. And Shenzhen Baoan Airport is
international airport,If you want to visit us ,that is very convenient.
Welcome to visit our factory!
2.Hong-Er Machine CE Certificate:

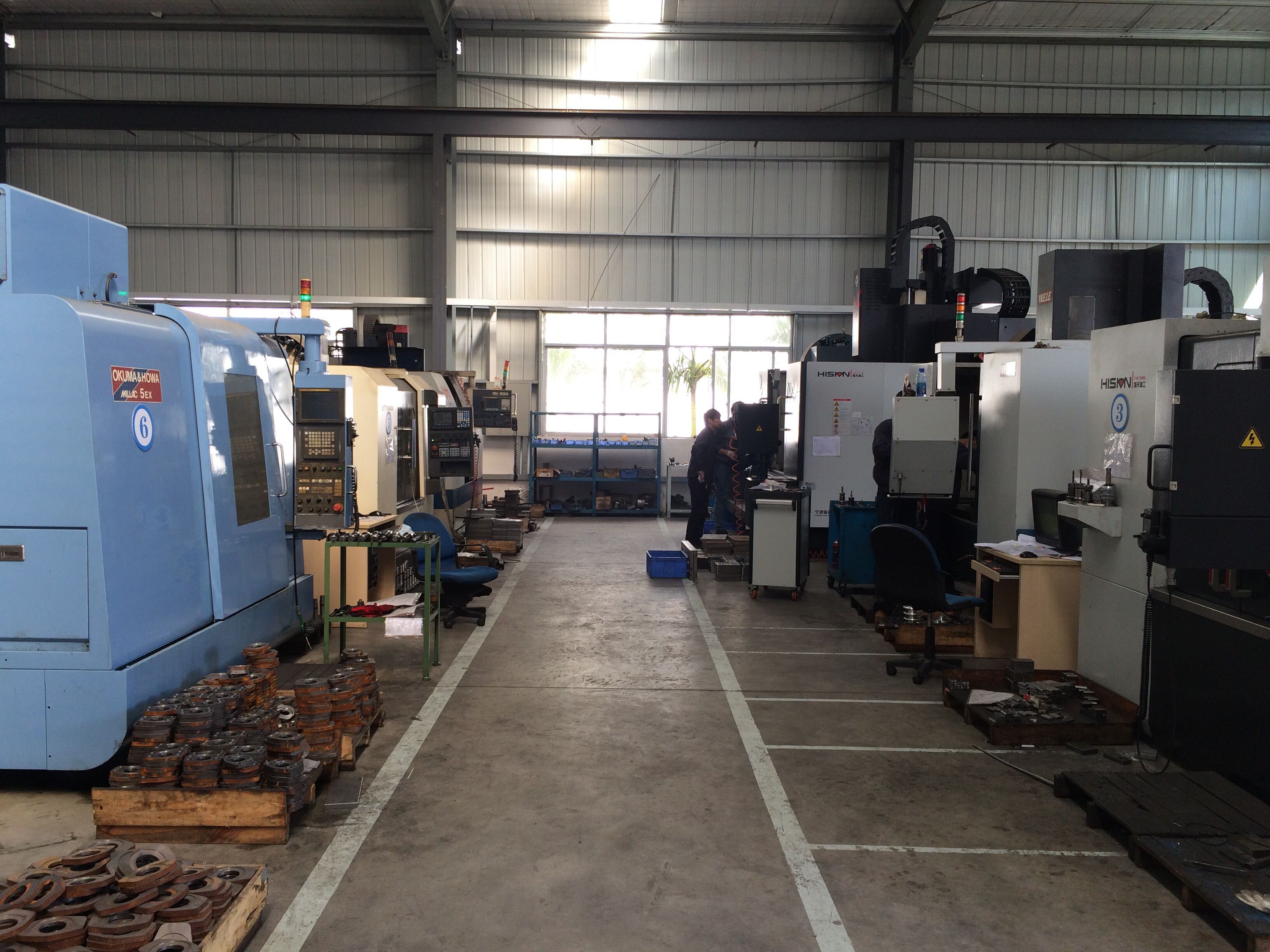

3.Hong-Er Factory And Workshop:




About Hong-Er Service:


1. We Can Provide To Buyer Details Requirement:


Package

Wooden case and film package

After-Sale service

1 Year

Delivery time

15-35 workdays

Shipping way

Ocean shipping

Payment term

T/T  L/C  Cash or other



2.Power Press 3 In 1 Feeder Packing:wooden case or other package. According to the actual condition.
