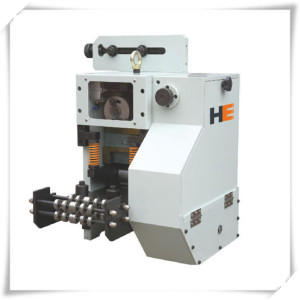

Gear Feeder Machine

Gear Feeder Machine

Gear Feeder Machine
CategoriesFeeding machine
AlbumView larger image
BrandHONGER
ModelGCF
High Feeding Precision+/-0.01mm
High Speed0-600SPM
Suitable for material thickness0.35-1.0mm
Feeding lengthOnly one (0.15-199 mm)
Material width0-300mm
Feeding angle180°
Release angle135°-195°
PowerNo
Suitable producestator and rotor pressing
CE CertificatePassed
FOB portShenzhen Port or China other port
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2017-10-19
Detail Information

About Gear Feeder Machine:


1.Gear Feeder Machine Introduction:


1. Our Gear Feeder Machine speed can reach 0-600S PM.  Precision is better than +/-0.01 mm. And suitable silicon steel metal coil.


2. Our Gear Feeder Machine is suitable 0.35-1.0 mm thickness all metal coil feeding.


3. Our Gear Feeder Machine widely used to EI sheets , stator and rotor industry.


2 .Gear Feeder Machine Feature And Advantage:


1. High precision:+/-0.01mm


2. High speed: 600SPM


3. Suitable for material thickness :0.35-1.0mm.


4. Only can feed 1 length .


5.No power,High quality ,lowest maintenance.


6. Easy operation, safe and high stability.


7.We can customize the machine.


3.Gear Feeder Machine Technology Data:


Model


Unit

GCF-150

GCF-200

GCF-250

GCF-300

Material width


mm

150

200

250

300

Material thickness


mm

0.35-1.0

0.35-1.0

0.35-1.0

0.35-1.0

Index no


4

4

4

4

Feeding length


mm

0.15-199

Feeding angle


180°

180°

180°

180°

Release angle


135°-195°


4. Gear Feeder Machine Details:


1. Designed for high-speed processing and higt precision feeding,feed length change is achieved by alternation lf 4 gears.


2. Modular configuration: gears,pneumatic material keep and release device.


3. Optional features: Material end sensing photoelectric switch,extended material support.


4. P=(mm)Feed length


5. N= lndex No


6.N1=First gear Number of teeth


7. N2=First gear Number of teeth


8. N3=Third gear Number of teeth


9. N4=Fourth gear Number of teeth


10. D=mm)Diameter of the lower roller


11. P=N1/N2XN3/N4X∏D/N


5.Our Gear Feeder Machine In Our Our Factory,Have Exported To Malaysia:






6.Gear Feeder Machine Producing Line:




About Hong-Er Machine:
1.  Hong-Er Machine Introduction
Shenzhen Honger Machine Equipment Co.,Ltd are professional Gear Feeder Machine,2 In 1 Sheet Steel
Straightener And Uncoiler, Decoiler Straightener Feeder,Sheet Metal Press Machine,Punching Press Machine,Decoiling
and Straightening Machine,NC Servo Roll Feeder,Servo Roll Feeder,Zig Zag Feeder,Mechanical Feeder,
Rapid Air Feeder,Uncoiler Machine,Sheet Metal Decoiler,Strip Straightening Machine,Sheet
Straightening Machine Manufacturer/Factory/Supplier/Exporter in Guangdong of China.
We are the only own international advanced big CNC that include FPW & VMC.
The Top one quality best price Machine manufacturer in Guangdong.
We are near to Hongkong,Guanggou,Dongguan etc. And Shenzhen Baoan Airport is
international airport,If you want to visit us ,that is very convenient.
Welcome to visit our factory!
2.Hong-Er Machine CE Certificate:



3.Hong-Er Factory And Workshop:




About Hong-Er Service:


1. We Can Provide To Buyer Details Requirement:


Package

Wooden case and film package

After-Sale service

1 Year

Delivery time

0-20 workdays

Shipping way

Ocean shipping

Payment term

T/T  L/C  Cash or other



2.Gear Feeder Machine Packing:wooden case or other package. According to the actual condition.





Hong-Er Online Contact Way:

Service Phone: 0086 755 28372363

Email: export@he-machine.com



If You Want To Know More Gear Feeder Machine Information,Please Don't Hesitate To Contact Us.


We Can Design And Produce According To Your Requirement.And We Have Exported Theses Machine To Poland, UK,


Hungary,Thailand ,USA, Germany,Malaysia ETC. Country. The Series Machine Are Very Welcomed !
