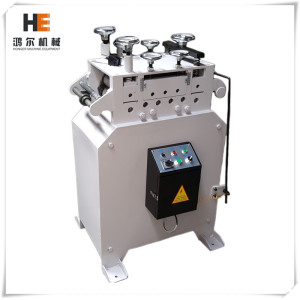

Sheet Straightener Machine

Sheet Straightener Machine

Sheet Straightener Machine
Sheet Straightener MachineSheet Straightener MachineSheet Straightener MachineSheet Straightener MachineSheet Straightener Machine
CategoriesStraightener machine
AlbumView larger image
BrandHONGER
ModelTL
Coil width0-1300mm
Suitable coil thickness0.5-3.2mm
Straightener RollerΦ60mm X 7 pics
Speed15m/min
PackageWooden case
Usually matchedServo roll feeder
CE certificatepassed
Frequency converterFor chossing
Delivery timeWith stock
Suitable materialSPCC, cold-rolled coil, hot-rolled coil etc.
FOB portShenzhen Port or China other port
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2017-08-17
Detail Information

About Sheet Straightener Machine:

1.Our Sheet Straightener Machine speed can reach 15 m /min. And suitable all kinds of metal coil straightening.

2.Our Sheet Straightener Machine are suitable 0.5-3.2 mm thickness all metal coil straightening

3.Our Sheet Straightener Machine widely used to computer, mobile phone,automobile industry,appliances manufacturing,   medical apparatus and instruments,Car Accessories, hardware & Metal parts etc industry.


2.Sheet Straightener Machine Feature And Advantage:


1. This kind of sheet straightener is suitable for material thickness :0.5-3.2 mm.


2. This is straightener machine is suitable for all kinds of metal coil automatic straightening ,easy to operate.


3. This is straightener machine suitable for metal parts, electron, electrical appliance, toy and auto parts continuous pressing production, straightening .


4. This is the cheapest price straightener machine with high quality ,lowest maintenance.


5. We can customize the straightener machine.


6. The straightener machine has fast speed:15 m /min.


7.The straightener machine's material is smooth ,without impression and scratching and suitable for all kinds of metal panels after straightened by machine,


8.The straightener machine adopts the Japanese electromagnetic touch system and electronic components,with less failures and long lifespan.


9.The straightener machine can individually used,or works with MT( like the below picture shows)or DBMT auto feeder stand for better result.


3.Sheet Straightener Machine Technology Data:


Name


Sheet Straightener Machine

Model


TL-150

TL-200

TL-300

TL-400

TL-500

TL-600

Coil width


150mm

200mm

300mm

400mm

500mm

600mm

Coil thickness


0.4-2.2 mm/0.5-3.2mm

Speed


15m/min

Strightener roller


Φ50mm*7pcs/Φ60mm*7pcs

Motor


0.5HP

0.5HP

1HP

1HP

2HP

2HP


4.Sheet Straightener Machine In customer's Factory,Have exported Thailand:


6.Sheet Straightener Machine Matched Equipment:

Progressive Mould/tool/die
Big heavy press machine
Photoelectric hand
Automatic feeder machine etc.

7. Sheet Straightener Machine Producing Line:




About Hong-Er Machine:
1.  Hong-Er Machine Introduction
Shenzhen Honger Machine Equipment Co.,Ltd are professional Sheet Straightener Machine, Decoiler Straightener
Feeder,Sheet Metal Press Machine,Punching Press Machine,Decoiling and Straightening Machine,NC Servo Roll Feeder,Servo
Roll Feeder,Zig Zag Feeder,Mechanical Feeder,Rapid Air Feeder,Uncoiler Machine,Sheet Metal Decoiler,Strip Straightening
Machine,Sheet Straightening Machine Manufacturer/Factory/Supplier/Exporter in Guangdong of China.
We are the only own international advanced big CNC that include FPW & VMC.
The Top one quality best price Machine manufacturer in Guangdong.
We are near to Hongkong,Guanggou,Dongguan etc. And Shenzhen Baoan Airport is
international airport,If you want to visit us ,that is very convenient.
Welcome to visit our factory!
2.Hong-Er Machine CE Certificate:



3.Hong-Er Factory And Workshop:



About Hong-Er Service:


1. We Can Provide To Buyer Details Requirement:


Package

Wooden case

After-Sale service

1 Year

Delivery time

0-20 workdays

Shipping way

Ocean shipping

Payment term

T/T  L/C  Cash or other



2. Sheet Straightener Machine Packing:wooden case or other package. According to the actual condition.






3.Feedback Time: within 2 hours. When we receive your inquiry and machine questions, We will reply you with 2 hours.


Hong-Er Online Contact Way:


Service Phone: 0086 755 28372363


Email: export@he-machine.com



If You Want To Know More Sheet Straightener Machine Information,Please Don't Hesitate To Contact Us.


We Can Design And Produce According To Your Requirement.And We Have Exported Theses


Machine To Poland, UK, Hungary,Thailand ,USA, Germany ETC. Country. The Series Machine Are Very Welcomed !


Q: What is Straightener Machine?


A: Straightener Machine is mainly used in the automotive industry, such as gear shaft, motor

 shaft, camshaft, steering gear rack, axle, synchronizer gear sets, gearbox shift fork.Due to

 strong adaptability,it also be used for textile machinery industry spindle shaft and roller, and

other typical mechanical products as well: motors, drill bits, extractor rods for molds, special

tubing, forged bars, profiles and non-circular sections.





Q: How many types of Straightener Machine ?


A:According to the different thickness of the leveling material:

1).ultra-precision straightening machine

2).preecision plate straightening machine,

3).precision straightening machine

4).material straightening machine

5).thick plate material straightening machine

According to the structural characteristics of pressure straightening machine:

1).roller straightening machine

2).pipe bar straightening machine

3).stretching straightening machine

4).stretching bending straightening machine and so on

For medium and thick plate straightening machine,it usually parallelly adjust by

the upper whole row of work rolls.





Q: How to choose a right Straightener Machine for me?


A: When considering a straightener machine for your application, there are several basic

variables you should take into account:

1. The thickness of the material

2. The type of material

3. The Max. width of metal strip

4. The Max. weight of metal coil

All influence the straightener configuration and capabilities required for a successful

installation.

Contact us now to find out the best straightening solution for your application.





Q: Which industries are your Straightener Machines found in?


A: Our Straighteners can be found in a wide range of industries including:

Automotive & Motorcycle

Electrical & Electronics

Furniture & Houseware

Construction

Hardware

Costumes

….

the list goes on.

We are always looking out for new industries and applications that can use

 straightener:

if you have an industrial application that requires straightening processing, why not get in

touch with us and let us show you just how versatile our material handling equipment can be.
