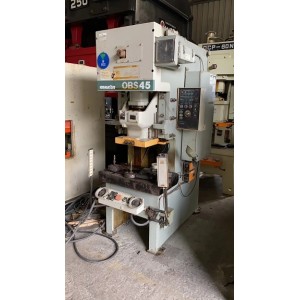

Komatsu brand(from Japan) 45T gap frame press

Komatsu brand(from Japan) 45T gap frame press

Komatsu brand(from Japan) 45T gap frame press
CategoriesC frame single crank press
AlbumView larger image
BrandXin Rui Feng
Press Capacity45Ton
Press Speed200-800/200-700/200-600 S.P.M.
Bolster Area680mm*420mm*90mm
Slide Area420mm*320mm
Adjusting Value30mm
FOB portShenzhen
Terms of PaymentT/T
Update Time2020-10-25
Detail Information

1.High Speed Power Press Features:

a.The machine body is made of high-intensive cast iron,which is much suitable for continous press with stable material and precision.

b.Double columns, one central coloum and zero error ball bearing.

c.Anti side action balancing device helps increse the precision and stability of press machine.

d.Equipped with manual die adjustment,die height indicator and hydraulic lock device.

e.Equipped with man-machine interface.

2.High Speed Power Press General Parameters:

Capacity45 ton
Stroke per minute200-800s.p.m.200-700s.p.m.200-600mms.p.m.
Closed die height213mm-243mm210mm-240mm205mm-235mm
Bolster area680mm*420mm*90mm
Slide area420mm*320mm
Slide adjustment30mm
Blanking hole100mm*400mm(500)
Motor power7.5HP
Gross weight5080kg
Loop systemForceful automation
Speed control systemInverter
Clutch & BrakeAir & Friction
Fixed-position stop systemStandard
Vibration systemMounting or pneumatic mounting(Optional)


Email: iris@chinadecoiler.com

Tel: 0086 755 28372363

Fax: 0086 755 28372353

1.What is this high speed power press for?

High speed power press is for stamping sheet metal precision pressed parts with high speed.

2..How can I know high speed power press is what I need?

If you haven't used high speed power press before,we would like to have some pictures and the drawing of your products which help us to figure out whether our high speed power press is suitable for that product or not.

Welcome to contact us if you have any other questions.
