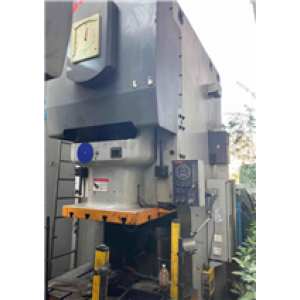

APM punching machine-160T

APM punching machine-160T

APM punching machine-160T
CategoriesAPM punching machine
AlbumView larger image
Capacity (ton)160T
Stroke per minute(spm)30-55/40-85
Stroke (mm)180/130
Double solenoid valveMAC
FOB portShenzhen, china
Update Time2019-09-18
Detail Information

About APM precision punching machine :

The machine body was welded of qualitysteel sheet and treated by tension elimination. Improve stability andreliability of precision of the machine.

2. In order to guarantee the machine running in stable andsmooth, adopts the design of symmetrical two slid boards with balancer .

3. The precision of mold adjusting up to 0.1mm, safety,reliable and convenient.

4. Crank, Gear, Connect bar are oxidized hardening andmilled, having super comprehensive mechanical performance and durable function.

5. Reasonable structural design, is convenient for automaticproduction and line production.

6. Used reliable high intensity clutch / brake and twinelectromagnetic valve, overloading protector an guarantee safe productionall-around.

7.Used high-grade alloy steel ,doublecrank, wide work center with connection bar structure, the optimized design issuitable for large sixes and the mold. bearing large impact loading as well aspressing of eccentric mold.

8.Adopted closed electric, havecompatible with any automatic equipments.

Product Features;


High rigidity, low integrated clearance, small  changing in mold height,

small deviation of dynanmic center, the mold life in large scale, small transfiguration for press


High precision processing, high efficiency operation, machine to ensure products of high quality

3. Operational;

Facilitate the operation of implementation, fixed locking type six-surface guide way, cutting low-noise, safe and reliable operating state

Technology Informations & Specification

Capacity 160 Ton
Model APM-160
Type S H
Rated Tonnage point (mm) 6 3
Stroke(mm) 180 130
Stroke per minute(spm) 30-55 40-85
Die height(mm) 450 400
Slide adjustment(mm) 100
Slide area(mm) 1600*650
Bolster area(mm) 1800*760
Side opening(mm) 700*450
Main motor(KW*P) VS.150*4
Slide adjust device(KW*P)  1*4
Air pressure(kg/cm2) 6
Press precision GB/JIS1 class
Press dimension(mm) 2309*2590*3682


Standard Unit Optional
High performance wet clutch & brake Die cushion
Electronic crank angle led display Vs motor
Electronic speed led display Safety light curtain
Off/inching/safety/one stroke/continuous Slide knock-out device
Hydraulic overload protector Main motor reversing circuit
Main motor (adjustable) Foot switch
Overrun detector Safety die block with plug
Portable2-hand push Quick mold replace mechanism
Dual solenoid valve Upper die clamper
Automatic slide adjust  Die lifter
Digital die height indication (unit0.1mm) Die arm
Automatic lubrication system Anchor bolts & foundation plates
Total counter ,6 digits Automatic feed equipment
Preset counter , 6 digits NC straightener feed c/w uncoiler (3 in 1)
Maintenance counter , 6 digits NC roller feeder
Life counter, 6 digits Straightener c/w uncoiler (2 in 1)
Electronic rotary cam switch (6 spare channel) Straightener
Air ejector 1/2”one channel
Air source receptacle 1/2”two channel
Missfeed detection circuit
Power receptacle (available only for single phase 110V power source siring by used )

Key components list with brand

No. Key Components List Brand
1 Motor TECO,Taiwan
2 Inverter Yaskawa
3 TOYOOK MAC,America
4 MultistageSwitch Fuji,Japan
5 Solenoid valve MAC,America
6 Pressure switch Fuji,Japan
7 Air switch and external parts Fuji,Japan
8 Switching power supply Fuji,Japan
9 Grease seal SKY,Japan
10 Hydraulic overloading protection device        Kingair,Taiwan
11 Manual slide adjustment device Kingair,Taiwan
12 Electric slide adjustment device MAC,America
13 Main motor(speed adjustable) Kingair/TECO
14 Mechanical die height indicator Jinsong
15 Electric die height indicator Jingsong
16 Slide and mould balancing device Kingair
17 Crank Angle Indicator Kingair
18 Counter Guangqi,Taiwan
19 Air source Receptacle Fuji,Japan
20 Over-run Safety Device Fuji,Japan
21 Jet air device Kingair,Taiwan
22 Filter SMC,Japan
23 Pressure regulating valve SMC,Japan
24 Atomized lubricator SMC,Japan
25 Manual grease pump Ishan,Taiwan
26 Bearing NSK,Japan
27 Clutch OPMI
28 Swith button Fuji,Japan
29 Crank Edmund
30 A set of assitant tools WIGA,Taiwan

Auto Pressing Line Drawing
