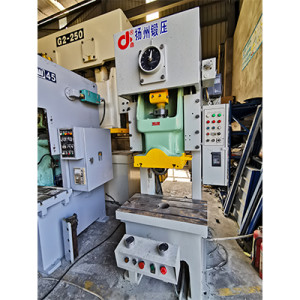

Yadon JH21-45 C frame high precision press

Yadon JH21-45 C frame high precision press

Yadon JH21-45 C frame high precision press
CategoriesC frame single crank press
AlbumView larger image
BrandXin Rui Feng
ModelJH21-45
BrandYadon
Capacity (ton)450KN
Stroke per minute(spm)60-90
Stroke (mm)100
Max. Die High270
Slide (RXL)410
Slide (FXB)340
FOB portShenzhen, china
Terms of PaymentT/T
Update Time2020-10-25
Detail Information

Yadon JH21-45 C frame high precision press

Features :

a. High precision,  high rigidity welded fuselage

b.High precision six side long guide rail;

c.High sensitivity hydraulic overload protection;

d. Variable frequency speed regulation;

e.Automatic adjustment of mould height (25t and 45t are manual adjustment);

f. Concentrated oil automatic lubrication system;

g. PLC centralized control, convenient operation;


Specifications:

ModelJH21-45
TypeL
Producing Date2011
Tonnage capacity450KN
Nominal stroke3.2 mm
Slide stroke100 mm
Stroke per Minute (Fixed)80 S.P.M.
Variable Stroke per Minute (optional)60-90 S.P.M.
Max die height (D.H.)270 mm
Die Height adjustment 60 mm
Between slide center and frame500 mm
Slide Area (L.R.xF.B.)410X340 mm
Bolster Area (L.R.xF.B.)810X440 mm

Contact:

emailiris@chinadecoiler.com

tel: 0086 755 28372363

fax: 0086 755 28372353



The press machine are widely used for manufacturing in the industries of aviation & aerospace,ship & vehicles,electroinc appliance,instruments and meters, medical facilities,hardward etc.


The below are our customers's products pictures:







Certificates:






What Is The Warranty Services For The Machine?

All of  Honger machine,such as high speed press machine, Feeder machine, uncoiler, decoiler, pressing machine will follow the list

warranty services. Warranty: One year of warranty service will be provided from the date the machine is delivered. For damage to

machine occurred in handling and failure not resulting from misuse during the warranty period, we will provide replacement of parts

and repair without charge.

The following failures are not covered by our warranty service:

A、Damage to parts due to operating machine in a voltage-changing environment without voltage regulator;

B、Failure resulting from unauthorized modification or handling;

C、Purchasing from agency or other manufacturer instead of us.

D、Failure caused by improper self-repair without instructions of our technician.

E、Damage resulting from natural disasters and circumstance beyond control.

F、Electrical parts and wearing parts are without warranties.


Would you provide OEM/ODM service ?

1.We are providing OEM services for our competitors from European country and Janpan company.


2.Hong-Er Machine is a professional factory of  high speed press machine, Automatic feeder machine, uncoiler machine/decoiler machine, straightener machine, decoielr straightener feeder, pressing machine etc.
