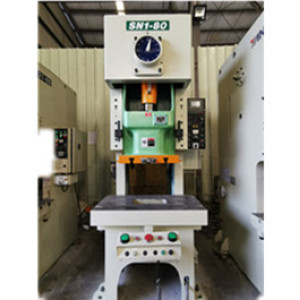

SEYI 80 Ton C frame single crank press

SEYI 80 Ton C frame single crank press
SEYI 80 Ton C frame single crank press
SEYI 80 Ton C frame single crank pressSEYI 80 Ton C frame single crank press
CategoriesC frame single crank press
AlbumView larger image
BrandXin Rui Feng
ModelSNI-80
Press Capacity80 Ton
Rated Tonnage Point5mm
Stroke150mm
Press Speed40-75 S.P.M.
Bolster Area1050mm*600mm
Slide Area560mm*460mm
Max. Die Height330mm
Main Motor7.5X4KW
FOB portShenzhen
Terms of PaymentT/T
Update Time2020-02-21
Detail Information


1.SEYI 80 Ton C frame single crank press Features:

a. Adopt high efficiency and low noise wet clutch.

b.Sophisticated electrical circuit, can be matched with a variety of automation equipment.

c.High precision transmission parts, minimum vibration, ensure press quality and life.

2.Specifications:

Capacity
80 ton
Stroke
150 mm
Stable speed
60 s.p.m.
Speed changing
40-75 s.p.m.
Rated tonnage point
5 mm
Die height
330 mm
Slide adjustment
80 mm
Bolster area
1050x600 mm
Shank hole
ø 50.8 mm
Main motor
7.5x4 HPXP


4.Contact:

Email: iris@chinadecoiler.com

Tel:+86 755 84829280

Fax:+86 755 28372353






1.What is high speed power press for?

High speed power press is for stamping sheet metal precision pressed parts with high speed.


2.How can I know high speed power press is what I need?

If you haven't used high speed power press before,we would like to have some pictures and the drawing of your products which help us to figure out whether our high speed power press is suitable for that product or not.


Welcome to contact us if you have any other questions.
