Motorized decoiler with manual expansion

Motorized decoiler with manual expansion
Motorized decoiler with manual expansion
Motorized decoiler with manual expansionMotorized decoiler with manual expansionMotorized decoiler with manual expansionMotorized decoiler with manual expansionMotorized decoiler with manual expansion
CategoriesC frame single crank press
AlbumView larger image
BrandXin Rui Feng
Applicable coil width0-800 mm
Applicable coil thickness0.1-1.6 mm
Loading weight0-2000 kg
Expansion wayManual
Pressing armOptional
Applicable Coil I.D.508 mm
Uncoiling Speed16 m/min
Max. applicable Coil I.D.1200 mm
Delivery time1-7 workdays
FOB portShenzhen Port or any other port in China
Terms of PaymentL/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time2020-01-27
Detail Information
Applicable Material

Material thickness

0.1 mm to 1.6 mm

Strip Width

20 mm to 300 mm

Coil Weight

30 kgs - 800kgs

Product Description

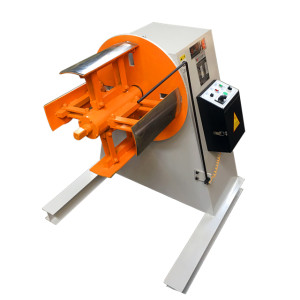

Motorized decoiler with manual expansion

Operation: Motorized

Application: Press feed

Customization available

Uncoiling speed can reach 16 m/min

Coil car, pressing arm for optional

Suitable for all kinds of coil material

Motorized decoiler with manual expansion
Max.Coil Width
200 mm
300 mm
400 mm
500 mm
600 mm
700 mm
800 mm
Coil Thickness
0.1-1.6 mm
Coil I.D.
450-530 mm
Coil O.D.
1200 mm
Coil Weight
500 kg
800 kg
1000 kg
1500 kg
2000 kg
3000 kg
3000 kg
* Machine Specification can be customized according to your demands.
Customer Application

Motorized decoiler machine with manual expansion

Model: MT-300

Application: Pressing Line

Destination: Korea

Packing & Delivery

Decoilers wrapped up
with plastic film

Fix Decoilers

  into wooden case

Delivery Decoilers

 to port

About HongEr Company

HongEr is one of the leading press peripheral equipment brand in China.
Our mission is to provide our customers with the very best quality coil handling solutions and after sales service.

We offer a wide range of coil handling equipments, including DecoilerStraightenerFeederPress Machine and Dies, as well as numerous after sales services for individuals, small businesses, mid-sized and large companies and multinational corporations.

Metal coil processing can be carried out faster and more accurately with an HongEr machine for better reliability, less waste and improved productivity.

For more information about how our coil handling equipment can support your business and help improve your productivity contact us directly, we are always happy to work with customers to identify your exact requirements so we can provide the very best, tailored solution.

CNC Machining Workshop

Assembly Workshop




Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it's 3-7 days if standard uncoiler machines are in stock.
Or it's 15-20 days if need customization

Q: How long is the warranty time?

A: 1 year warranty. If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q: How does your factory do regarding quality control?

A: Quality is priority. Hong-Er People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q: Do you sell ONLY standard machines?

A: No, most of our machines are made according to customers specifications, using international brand components.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us now.
