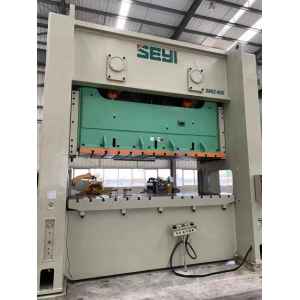

Seyi brand 400T straight side double crank press SNS2-400
a. Straight wall type one-piece frame, fast installation and production, no defects of C-type punch frame opening throat.
b. It is suitable for precision mould or continuous mould processing, and the service life of mould is better.
c. Applicable to American, European and Chinese regional security regulations.
d. It can be matched with various peripheral devices to realize full automatic operation.
|Stroke Length (L)||300|
|Stroke per Minute||20-40|
|Die height (D.H.)||600|
|Slide adjustment (R)||120|
|Slide Area (L.R.xF.B.)||2200X1000|
|Diameter of Shank Hole||ø 51|
|Bolster Area (L.R.xF.B.)||2500X1100|
|Bolster Thickness (T)||200|
